Pollen filter replacement guide.

REPLACING A POLLEN FILTER ON A RENAULT LAGUNA.

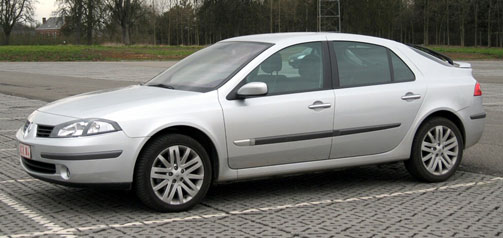

It is good practice to change your pollen filter (also called a cabin filter) annually. This filter removes dirt from the outside air before it passes through the heater fan and is blown into the interior for you to breathe. They usually cost no more than £15 from any motor factors and can often be changed in less than ten minutes. On most vehicles they are behind the glovebox but on some you will find them in the engine bay near the bulkhead. Here we will explain how to easily and quickly change a cabin filter on a Renault Laguna 2.

You will need the following:

1. A flat bladed screwdriver

2. A Torx T20 screwdriver (or T20 socket bit)

3. A vacuum cleaner with a thin crevice tool

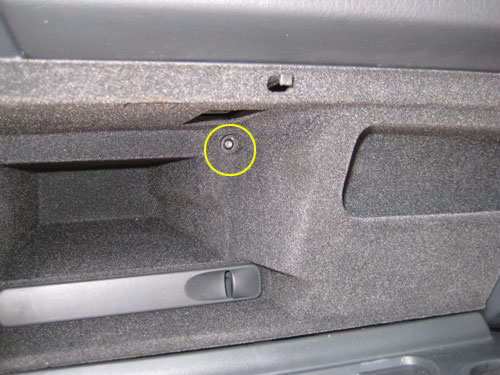

Open the glovebox and undo the Torx T20 screw circled in yellow below. If you do not have a Torx T20 screwdriver you might be able to carefully undo it with a regular screwdriver.

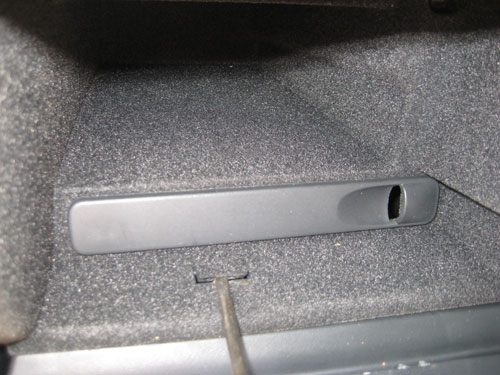

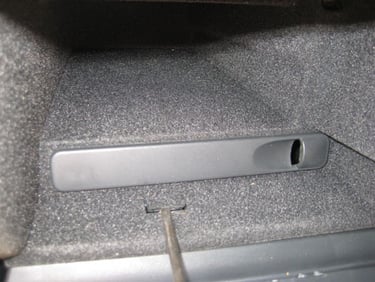

Next there are two clips holding the glovebox in place - one on the bottom and one on the top. Insert a screwdriver to bend the bottom clip upwards then pull the glovebox out slightly. Bend the top clip down and you should be able to pull the glovebox out completely.

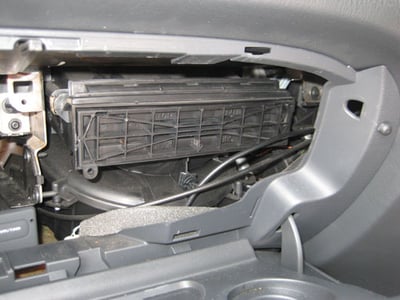

You should now see a rectangular cover which needs removing to permit access to the filter. If there are screws holding this in place remove these first. Using a screwdriver prise the lid off and remove it.

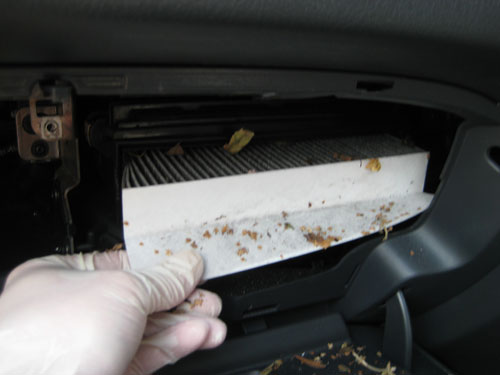

Pull the old filter out - this one was only 9 months old and was quite dirty and covered in leaves.

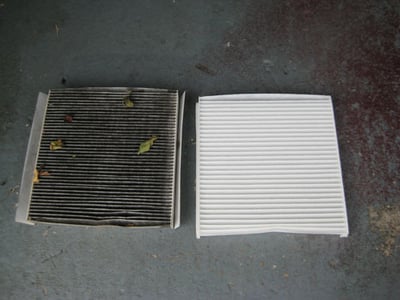

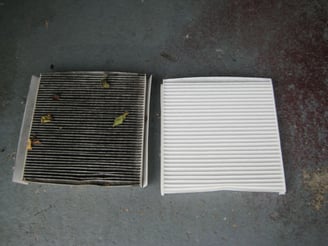

Comparing the old and new pollen filters:

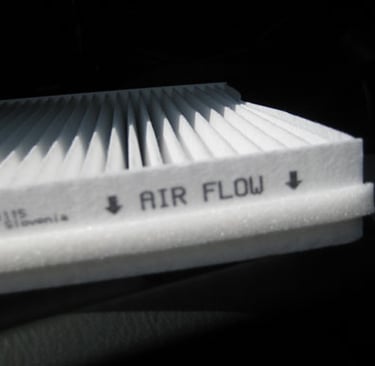

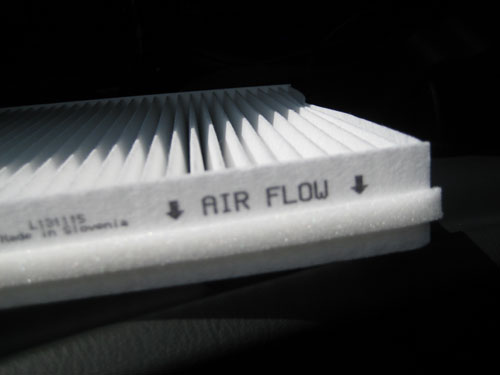

Use your vacuum cleaner to remove any leaves or debris from inside the box that houses the filter. The new cabin filter has arrows indicating the direction of airflow through it. On this vehicle the air is sucked from above down through the filter so fit it with the arrows pointing downwards.

Clip the plastic cover back on, slot the glovebox back in and refit the Torx screw and the job is done. Now enjoy the fresh unrestricted airflow into your car's cabin again!

We hope you found this guide useful. If your air conditioning isn't blowing cold please contact us now for a friendly, no obligation chat.
